Modular Rainwater Systems for Drought-Prone Areas

By AIGardenPlanner Team

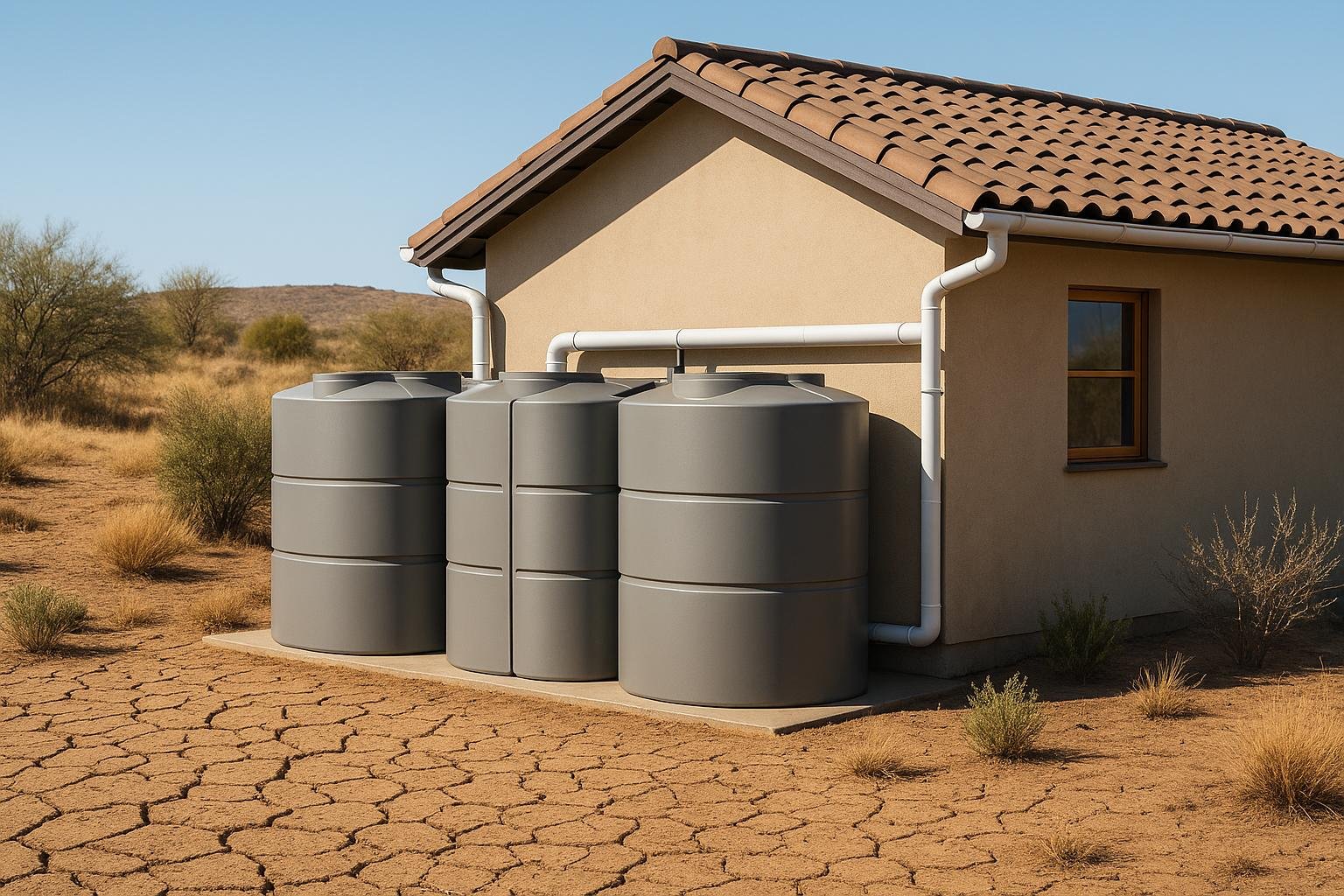

Modular Rainwater Systems for Drought-Prone Areas

Explore modular rainwater systems as an efficient solution for water conservation in drought-prone areas, combining flexibility and eco-friendliness.

Modular Rainwater Systems for Drought-Prone Areas

Rainwater harvesting has evolved, offering smarter, flexible solutions for areas facing water scarcity. Modular rainwater systems stand out by using interlocking, underground tanks made from durable materials like polypropylene or HDPE. They collect, filter, and store rainwater efficiently, making them an ideal choice for drought-prone regions.

Key Benefits:

  • Quick Installation: 1–15 days vs. 30+ days for conventional systems.
  • Space-Saving: Installable under parking lots or roads.
  • Scalable: Expand storage as water needs grow.
  • Durable: Lasts up to 55 years, supports heavy loads (60 tons/m²).
  • Eco-Friendly: Often made from recycled materials.

How It Works:

  1. Collection: Roofs collect rainwater, which flows through gutters.
  2. Filtration: Debris and pollutants are removed via multi-stage filters.
  3. Storage: Water is stored in underground modular tanks, reducing evaporation.
  4. Distribution: Pumps and pipes distribute water for irrigation, household use, or groundwater recharge.

Why It Matters:

With droughts affecting millions globally, modular systems provide a reliable way to conserve water, reduce dependency on municipal supplies, and replenish groundwater. Their quick setup, efficiency, and long-term savings make them a practical solution for both residential and commercial needs.

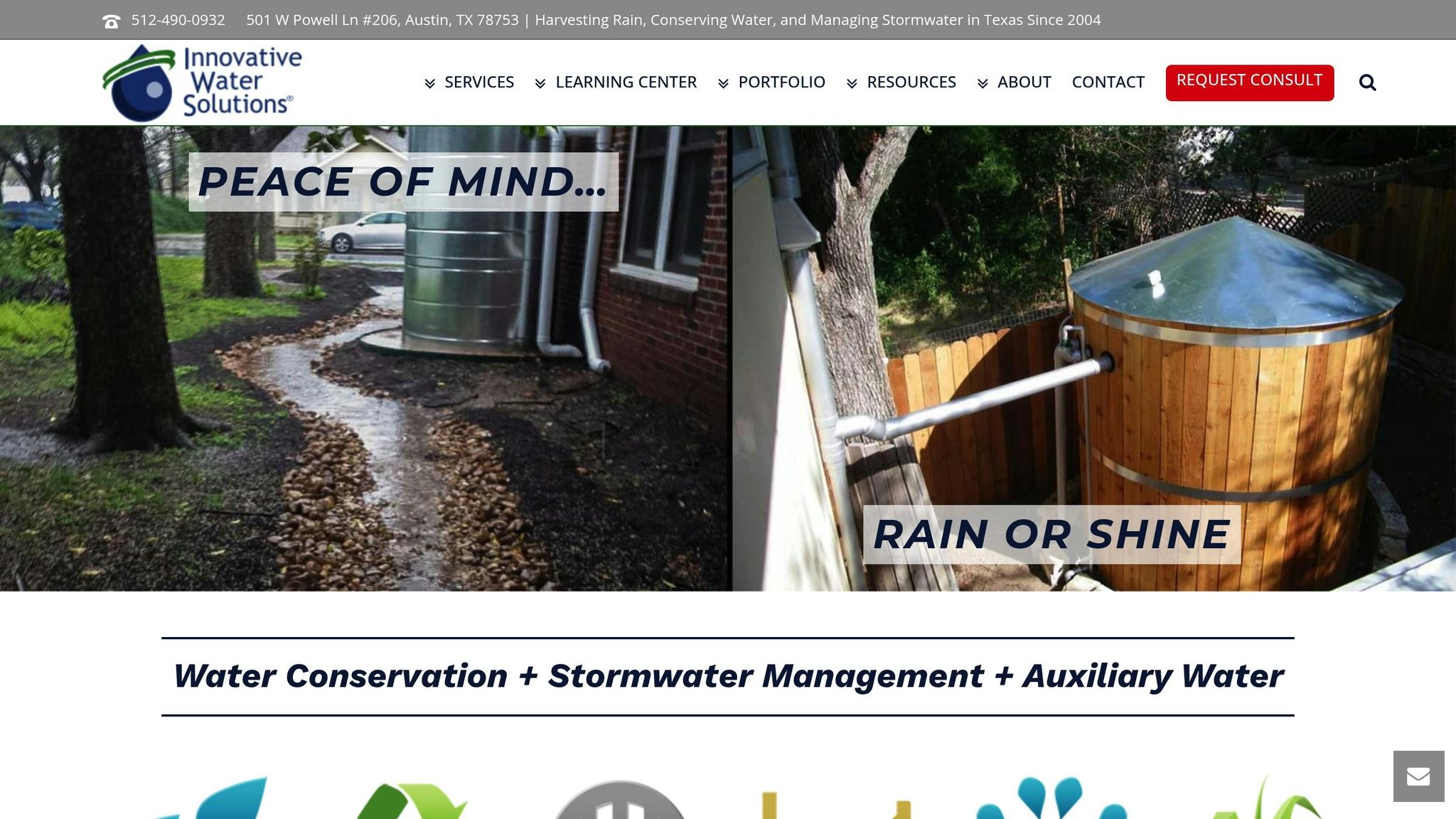

30,000 gallon modular, underground rainwater harvesting system | Innovative Water Solutions

Innovative Water Solutions

Limited Time Offer

Transform Your Garden Today - First Design FREE!

Turn your outdoor space into a stunning landscape. No credit card required.

Get Free Design

Key Components of a Modular Rainwater System

Modular rainwater systems combine specialized parts to efficiently collect, filter, store, and distribute water. These systems are particularly effective in addressing water shortages, especially in areas prone to drought.

Collection and Filtration Systems

Your roof and gutters are the starting point for any rainwater collection system. For perspective, a 2,000-square-foot roof can capture about 1,250 gallons of water for every inch of rainfall[6]. Over a year with 30 inches of rain, this adds up to an impressive 41,000 gallons of reusable water[6].

Once rainwater is collected, it undergoes a filtration process to remove debris and contaminants. The first step involves inlet filters, which trap larger debris like leaves and dirt. These filters should be cleaned weekly, especially after storms or extended dry periods.

🎨 Transform Your Garden Today

FREE

Turn your outdoor space into a stunning landscape

Upload 1 Photo
50+ AI Designs
First Design Free

Join 10,000+ happy gardeners • No credit card needed

Next, first flush diverters come into play. They automatically redirect the initial flow of rainwater - often carrying pollutants like bird droppings, fine dust, and algae - away from the storage tank[5].

For larger setups, multi-stage filtration is a must. A typical setup might include a Jali filter with a 10 mm mesh, followed by finer filters with openings of 1 mm or less[5]. Advanced systems often use Vee-Wire stainless steel filters, which improve water flow to underground storage. Rooftop online filters, equipped with self-cleaning screens, provide continuous debris removal as water flows over them - eliminating the need for frequent manual cleaning[5].

Once filtered, the rainwater is channeled into modular storage tanks for safekeeping.

Modular Storage Tanks

Storage tanks are the backbone of a modular rainwater system, offering a level of flexibility that traditional concrete or metal tanks simply can't match. Made from materials like recycled polypropylene or HDPE, these tanks come in capacities ranging from 1,000 to 5,000 liters (264 to 1,320 gallons) per module[1][8]. The modular design allows you to start small and expand as your needs grow, unlike fixed-capacity tanks.

Installing these tanks underground saves valuable surface space and helps maintain consistent water temperatures. They can be placed beneath driveways or parking lots, making them ideal for urban settings. Underground placement also reduces evaporation and minimizes algae growth[1][7].

Another advantage of modular systems is their quick installation. While traditional concrete tanks can take over 30 days to set up, modular systems are often ready in just 1 to 15 days[1]. This not only saves time but also reduces labor costs. Modern tanks are designed with user-friendly features like filter buckets and desiltation chambers for easy cleaning, as well as water level indicators and overflow systems to handle heavy rainfall efficiently.

Water Distribution Systems

Once stored, the harvested rainwater is distributed through a well-organized network to meet various needs. Pumps play a key role in transferring water to irrigation systems or household uses, so regular inspections for mechanical issues are crucial.

To ensure safety, backflow prevention devices are essential and should be professionally tested every year. Flow meters equipped with data loggers can monitor water usage, helping you identify leaks and optimize consumption[4]. While manual checks are possible, automated systems offer more reliable data for effective water management.

Control systems tie everything together by monitoring water levels, filter performance, and pump operations. For irrigation, these systems often include pressure regulators and zone valves to ensure even water distribution without over-saturating certain areas.

If the harvested rainwater is intended for indoor use, additional treatment may be necessary. Simple sand filters are sufficient for irrigation, but indoor applications typically require advanced filtration and disinfection systems.

Thanks to their modular design, these distribution systems can grow with your needs. Whether it’s adding new irrigation zones, upgrading pumps, or integrating smart controllers, you can make enhancements without overhauling your entire setup. This flexibility ensures that your water management system remains adaptable as your requirements change over time.

Evaluating Site Conditions and System Sizing

Getting the right size for your modular system starts with a thorough evaluation of your site. A detailed assessment ensures you don’t end up with a system that’s too large or too small for your needs.

Rainfall and Collection Area Assessment

Understanding your local rainfall patterns is the first step in designing a rainwater harvesting system. To get started, check historical weather data from your nearest meteorological station. This will give you insights into seasonal rainfall patterns, average monthly precipitation, and the likelihood of extended dry spells. Knowing not just how much rain falls annually, but when it falls, is critical - especially in areas prone to drought.

The formula for estimating how much rainwater you can collect is simple:

"Harvestable Water = Rainfall × Catchment Area × Collection Efficiency" [9]

For reference, 1 inch of rain on a 1,000-square-foot roof produces roughly 623 gallons of water [9]. So, if your roof spans 2,000 square feet and your area gets 30 inches of rain annually, your potential collection would be about 37,380 gallons (2,000 sq ft × 30 inches × 0.623).

When calculating your catchment area, focus on the horizontal projection of your roof - the area you’d see if you were looking straight down from above. Avoid using the sloped surface area, as it doesn’t accurately reflect the water collection potential.

Your roofing material also plays a big role in collection efficiency and water quality. Metal roofs are highly efficient, often achieving 90-95% collection rates [9]. On the other hand, rougher materials like gravel or asphalt may collect less water. For example, a study in Spain (2008-2010) found that smooth, sloping roofs (like those made of metal or plastic) had a runoff coefficient above 0.9, collecting about 50% more water than flat gravel roofs with a coefficient of 0.62 [10].

"The inclusion of criteria related to the roof's slope and roughness in city planning may be useful to promote rainwater as an alternative water supply while preventing flooding and water scarcity." [10]

In addition to the roof, take note of your site’s natural drainage and slopes. Water will always flow to the lowest point, so understanding these patterns will help you decide where to place collection points and storage tanks. Once you’ve determined your collection potential, the next step is calculating how much storage you’ll need.

Calculating Storage Requirements

After estimating your collection potential, you’ll need to account for system efficiency. Most rainwater harvesting systems operate at 70–85% efficiency [9], factoring in losses from evaporation, the first flush effect, and other inefficiencies.

Here’s an example: Imagine a house with a 2,000-square-foot roof in an area that gets 30 inches of rain annually:

  • Basic collection potential: 2,000 sq ft × 30 inches × 0.623 = 37,380 gallons annually
  • Adjusting for efficiency: 37,380 gallons × 0.80 (80% efficiency) = 29,904 gallons annually

If the household uses 200 gallons daily (73,000 gallons per year), the system would collect enough to cover about 40% of the annual water demand. For a 60-day drought, you’d need around 12,000 gallons of storage to bridge the gap.

The key is to calculate your needs based on the longest expected dry spell in your area. This is more important than total annual rainfall when sizing your storage system. If you live in a drought-prone region, you might face 60 to 90 days without significant rain, so your storage capacity needs to cover these periods.

Several factors can influence your storage requirements:

Factor Impact on Storage Needs
Soil type Clay retains more water, reducing irrigation needs, while sandy soil requires more frequent watering.
Site slope Steeper slopes may need larger storage tanks at lower elevations to maintain water pressure.
Proximity to utilities Underground tanks near building foundations might need special engineering considerations.
Seasonal water table High water tables can limit underground storage options, making above-ground tanks a better choice.

Your storage system should strike a balance between space, budget, water usage patterns, and rainfall reliability. Modular systems are particularly flexible - you can start with a smaller tank (5,000–10,000 gallons for residential needs) and expand as necessary. This flexibility is especially useful during prolonged dry periods or as your water demands increase.

In areas prone to drought, it’s wise to plan for the worst-case scenario. This ensures you’ll have enough water when you need it most.

🚀 Ready to Reinvent Your Garden?

Join thousands of homeowners who have transformed their gardens using our AI design tool. Upload one photo to explore endless possibilities.

Choosing the Right Modular Rainwater System

After determining your storage needs and evaluating site conditions, the next step is to pick a system that will reliably serve you for years. In areas prone to drought, the best system balances durability, expandability, cost, and local regulations.

Durability and Expandability

The material of your tank plays a major role in its lifespan and cost. Here's a quick comparison of common materials and their uses:

Tank Material Price Range (5,000 gallons) Ideal For
Polyethylene $2,000 - $4,000 Above-ground, UV resistance
Fiberglass $2,000 - $5,000 Corrosive environments
Steel $3,000 - $6,000 High-pressure applications
Concrete $3,000 - $6,000 Underground, large capacity

Polyethylene tanks are a go-to option for residential setups. They're lightweight, affordable, and built to resist UV damage, making them suitable for regions with fluctuating temperatures. On the other hand, fiberglass tanks excel in handling acidic rainwater or challenging environmental conditions due to their chemical resistance.

Regular maintenance is key to extending your tank's life. Keep an eye out for cracks, leaks, or other structural issues. Above-ground tanks are particularly vulnerable to weather changes, so consider protective coatings or weatherproof materials to combat damage from sunlight and temperature swings.

When it comes to expandability, modular systems shine. Their standardized sizes make installation straightforward, ensuring consistent pressure across the system. By linking tanks at the base and installing them on a level foundation, you can manage overflow efficiently. This setup also allows you to start small - say, with a single 5,000-gallon tank - and expand as your water needs grow.

Cost and Compliance

System costs can vary widely depending on complexity. For smaller needs, rain barrels cost around $120 to $160, making them perfect for gardens. More advanced setups include:

  • Dry systems: Positioned near the collection point, costing $1,000 to $5,000.
  • Wet systems: Using underground piping to transport water to distant tanks, priced between $8,000 and $15,000.

Labor costs for professional installation typically range from $50 to $100 per hour. However, many modular systems are DIY-friendly, saving you significant labor expenses. That said, wet systems might still require professional expertise to ensure proper drainage and prevent freezing issues.

Rooftop rainwater harvesting is generally more affordable than surface runoff systems. The latter requires additional filtration and treatment to handle contaminants, which increases both setup and upkeep costs.

While upfront costs are important, consider the long-term savings. Rainwater harvesting can cut a household's potable water use by 30–60%, depending on usage and catchment area [12]. With the U.S. losing 2.1 trillion gallons of treated water annually due to aging infrastructure [13], and replacement costs projected to hit $500 billion [13], investing in rainwater systems makes both economic and environmental sense.

"Rainwater harvesting isn't just a trend - it's the future of water conservation." - Barry Chenkin, Aquabarrel [2]

Understanding local regulations is crucial. Rainwater harvesting laws vary by state, as the federal government leaves regulation to individual states [14]. Some states actively promote the practice. For instance:

  • Texas: Offers tax incentives and sales tax exemptions for rainwater systems [14][17].
  • Utah: Allows up to 2,500 gallons of collection with a permit [14][15].
  • Colorado: Previously prohibited rainwater harvesting but now permits limited collection [14][15].

Always check state laws and consult local zoning, fire, building, and health departments for specific requirements [15][16]. Some states also provide rebates or financial incentives to offset initial costs.

In wetter regions, like the Eastern U.S., water laws differ from those in drier Western states [15]. If you're planning to connect your system to potable water or install underground tanks, ensure your contractor complies with local codes [14].

Optional components, such as gutter mesh, downspout screens, first flush diverters, and tank gauges, can improve water quality and system reliability. These add-ons typically range from $500 to $2,000 [11]. While not mandatory, they can make a big difference in ensuring every gallon captured contributes to effective water management, especially in drought-prone areas.

sbb-itb-4d6a8dd

Installation and Maintenance Best Practices

Proper installation is key to conserving water, especially in areas prone to drought. A poorly installed system can lead to expensive repairs and water loss, while regular maintenance ensures your system runs efficiently for years.

System Setup and Assembly

Preparing the site is a crucial first step. Choose a level area that can handle the weight of water-filled tanks. Keep in mind that water weighs about 8.34 pounds per gallon, so a 5,000-gallon tank will weigh over 41,000 pounds when full. To support this, create a stable, compacted base using gravel or a concrete pad.

Proper sizing of your system is equally important. Many people underestimate how much water they can collect, leading to undersized tanks and overflow issues. This can cause water to spill near foundations, which is something to avoid [22].

When connecting multiple tanks, match the overflow pipe size to the input pipe size to prevent bottlenecks. For instance, a 4-inch input pipe requires a 4-inch overflow pipe. Direct the overflow to useful areas like rain gardens or mulched beds instead of letting it pool near your foundation or flow into storm drains [22].

Installing gutters and downspouts requires attention to detail. Use screens at downspout inlets to keep water flowing smoothly [23]. For larger systems, avoid sharp turns in the piping - opt for sweeping 90-degree angles instead [23].

While professional installation costs range from $1.50 to $7.00 per gallon of storage capacity [19], many modular systems are designed for DIY assembly. If you hire a contractor, ensure they follow local building codes and regulations [14]. Once installed, ongoing checks will keep your system running efficiently.

Routine Maintenance and Monitoring

Once your system is installed, regular upkeep is vital to ensure it performs well over time. In areas where water is scarce, maintaining your system becomes even more critical.

Frequent inspections will help your system last longer. Civil Engineer Chris Maxwell-Gaines from Innovative Water Solutions LLC stresses the importance of this:

"Proper maintenance is the key to a successful rainwater harvesting system. By investing time and effort into regular checks and cleaning, you not only ensure the longevity of your system but also contribute significantly to water conservation efforts." [20]

Seasonal maintenance is essential for keeping everything in working order. Inspect gutters, downspouts, and roof surfaces for debris every six months [20]. After heavy rain, check filter baskets and ensure first flush diverters are functioning properly [20]. Clean filters monthly or quarterly, depending on their type, and periodically check inside the tanks for debris [20].

Gutter upkeep is especially important. Clogged gutters can shut down your entire system, so clean them every three months and use guards to prevent debris buildup [21].

Managing water quality is another key aspect. Test your water annually and consider professional tank cleaning to remove sediment [20]. For potable water systems, replace filters every six months and UV bulbs yearly [20]. Every 2–3 years, de-sludge the tanks to clear out sediment and minerals [21].

Winterizing your system is crucial in colder climates. Insulate exposed pipes and use heat lamps near pumps [20]. Drain irrigation systems by unplugging pumps and opening hose bibbs [20]. Also, empty first flush filters to prevent freeze damage [20].

Avoid common maintenance errors that can affect efficiency. Skipping pre-filtering allows debris into your tanks [24]. Failing to seal tanks properly can lead to water loss through evaporation [24]. Regularly monitor tank levels to avoid overfilling or running dry, both of which can compromise your system's purpose during dry spells [24].

Monitoring pH levels is especially important for irrigation. Use pH testing kits to ensure the water is safe for plants. Rainwater tends to be slightly acidic, but extreme pH levels can signal contamination or harm plant health [24].

Place tanks in shaded areas or use insulating materials to reduce evaporation and temperature swings [24]. After severe weather, inspect tanks for cracks or damage - catching small issues early can save you from costly repairs later.

Planning and setting up a rainwater harvesting system takes time, often months [18]. Start the process well in advance of when you'll need the water. As the saying goes:

"The best time to plant a tree is twenty years ago. The second best time is now" [18].

This wisdom applies to rainwater harvesting, too. Even when the weather is clear, it's the perfect time to prepare for future droughts [18].

Using AI Tools for Drought-Smart Garden Design

Combining modular rainwater systems with smart garden strategies is a game-changer for conserving water in drought-prone areas. When water resources are limited, thoughtful garden planning becomes essential. AI-powered garden design tools are revolutionizing how homeowners and landscapers create water-efficient gardens, especially when paired with modular rainwater systems.

These AI tools analyze factors like climate, soil type, sun exposure, and water availability to recommend plants and layouts that make every drop of collected rainwater count. This tech-driven approach aligns perfectly with the adaptability of modular rainwater systems, ensuring efficient water storage and optimal plant selection work hand in hand.

Personalized Garden and Irrigation Planning

AI garden planners are particularly adept at matching plants to specific growing conditions, a key step in conserving water. For instance, AIGardenPlanner evaluates your location, soil type, and weather data to suggest plants that require less water while still meeting your aesthetic or functional goals [25]. By inputting details like space dimensions, sun exposure, soil quality, water availability, budget, and gardening experience, the platform quickly generates a customized plant list complete with photos and care tips.

"Our AI doesn't just change your garden – it transforms it. With complete control over every aspect, from targeted garden makeovers to full property transformations." [25]

AIGardenPlanner can produce garden designs in less than a minute, saving users an average of over four hours per design [25]. It offers more than 50 pre-designed garden styles, while also allowing users to create custom layouts tailored to their rainwater system's capacity and distribution. Additionally, the AI Plant Advisor can identify existing plants, diagnose health issues, and provide updated care suggestions based on seasonal changes and water availability.

Integrating Rainwater Systems in Garden Design

AI tools go beyond aesthetics by optimizing how modular rainwater systems function within the garden. For example, when you upload a photo of your garden to AIGardenPlanner, the platform analyzes the layout and suggests adjustments to make the most of rainwater collection. It highlights spots for drought-resistant plants and recommends efficient irrigation systems to conserve water [26]. This ensures that every element of your garden design harmonizes with your rainwater harvesting setup.

By grouping plants with similar water needs, AIGardenPlanner designs precise irrigation zones that align with the capacity of your rainwater system. This addresses a common issue - 55% of gardeners struggle with plant selection [27] - by eliminating guesswork and providing accurate, data-backed recommendations.

The platform's visual planning tools also help you see how rainwater distribution integrates into your garden's layout. It considers sun exposure patterns and suggests suitable plant heights and spacing to ensure the design is both functional and visually appealing while complementing your rainwater system.

For professional landscapers, AIGardenPlanner offers commercial licensing and priority support. Higher-tier plans include up to 500 AI-generated photos per month and the capacity to manage up to 1,000 projects. This makes it a practical solution for designing multiple rainwater-integrated gardens across various properties and climate zones.

Conclusion and Key Takeaways

Modular rainwater systems are reshaping how we approach water management, especially in areas prone to drought. These pre-engineered, interlocking units can be customized to meet specific site needs, offering unmatched adaptability. For instance, a commercial roof spanning 5,000 m² (about 54,000 square feet) in a region with an annual rainfall of 59 inches could collect over 1.8 million gallons of water per year. This translates into savings of more than $10,000 annually in water costs and associated fees [3].

Beyond their adaptability, these systems bring substantial environmental advantages. They help recharge groundwater, reduce stormwater runoff (a major cause of flooding and erosion), and enable communities to become more self-reliant during droughts [28][29]. Additionally, rainwater harvesting systems can replace 30% to 60% of municipal water usage, significantly cutting costs by utilizing treated rainwater [30].

The applications for modular systems are vast. They can be used for tasks like toilet flushing, irrigation, cooling systems, and cleaning operations. In rural and remote areas, they offer a cost-effective solution for water supply. Some modern geocellular modules are even built to withstand heavy-duty applications, with load capacities reaching up to 60 tons [30].

Perhaps the most important benefit is their role in climate resilience. As extreme weather events grow more frequent, these systems help property owners prepare for both droughts and floods. This is reflected in the growing demand for rainwater harvesting systems, with the global market valued at $2.8 billion in 2023 and expected to nearly double, growing at an annual rate of 6.7% [31].

"Whether for flood control, sustainability, water efficiency, or infrastructure resilience, rainwater harvesting and attenuation systems are no longer optional - they are essential." - YudeRainEco [30]

When paired with tools like AIGardenPlanner, which optimize irrigation and plant selection, the efficiency of modular rainwater systems improves even further. This combination ensures that every drop of harvested rainwater supports vibrant, drought-resistant landscapes, amplifying the practical advantages outlined above.

🎨 Visualize Your Dream Garden Today!

Transform any outdoor space into a professional landscape design in minutes. Just upload a photo, choose your style, and let our AI do the rest.

FAQs

What are the cost and efficiency benefits of modular rainwater systems compared to traditional methods?

Modular rainwater systems stand out for their cost-effectiveness and efficiency compared to traditional rainwater harvesting setups. Thanks to their flexible and adaptable design, they come with lower initial costs and are simpler to install and maintain. This makes them a smart option for properties of all sizes and a wide range of budgets.

When it comes to performance, these systems excel by being tailored to match specific site conditions. This customization boosts water collection while reducing overflow, leading to improved water conservation. They're especially useful in drought-prone regions where making the most of available resources is crucial.

How can I properly maintain a modular rainwater system to keep it efficient and long-lasting?

Maintaining a modular rainwater system is key to keeping it efficient and lasting longer. Start by inspecting the system regularly for any debris, leaks, or signs of damage. Make it a habit to clean out gutters, filters, and storage tanks to prevent clogs and keep everything running smoothly. Pay close attention to the seals at all connections to ensure there’s no water leaking out.

It’s also a good idea to keep an eye on water quality by testing for sediment buildup or algae, especially if you live in a warmer area where these issues are more common. If needed, replace or add screens and first-flush diverters to help keep the water clean. Staying on top of maintenance not only extends the life of your system but also ensures it performs well when you need it most, like during dry spells.

How can AIGardenPlanner help improve modular rainwater systems in areas affected by drought?

AIGardenPlanner can significantly improve how modular rainwater systems perform, especially in areas prone to drought. By analyzing factors like local climate, rainfall trends, and soil conditions, it helps fine-tune strategies for collecting and storing rainwater, ensuring that water is used efficiently during dry spells.

Beyond that, it provides insights for designing systems that align with specific environmental needs, boosting water reliability and long-term usability. Its personalized recommendations make it a powerful resource for developing solutions that can withstand the challenges of limited rainfall.
